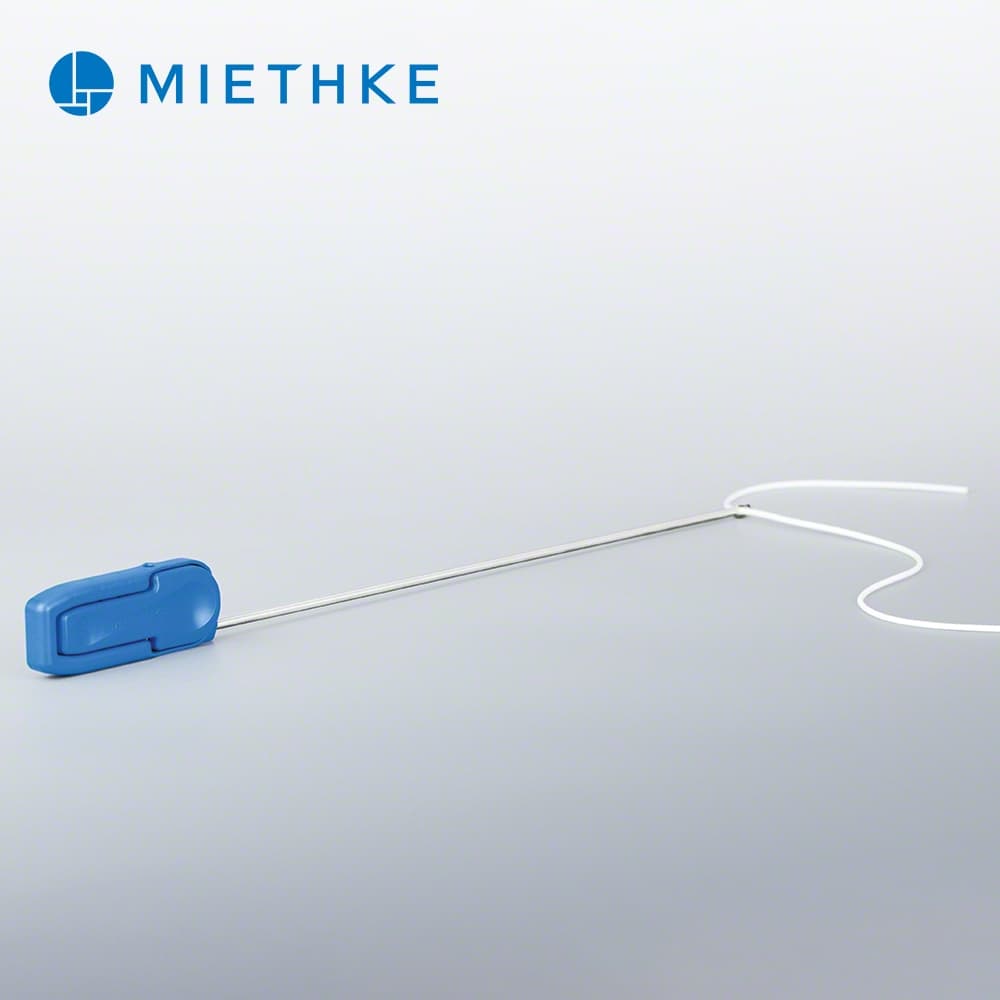

MIETHKE tunneller
MIETHKE Tunneller er et unikt instrument for implantering av en hydrocephalus-shunt. Den spesielle egenskapen er muligheten til å endre retningen på håndtaket under implantasjon, samt muligheten til å bytte skaftet, som har to forskjellige spisser (skarp og butt). Dette gir maksimal fleksibilitet for ulike bruksområder. Det finnes totalt fire forskjellige lengder, hver med to forskjellige grader av hardhet på skaftet.
