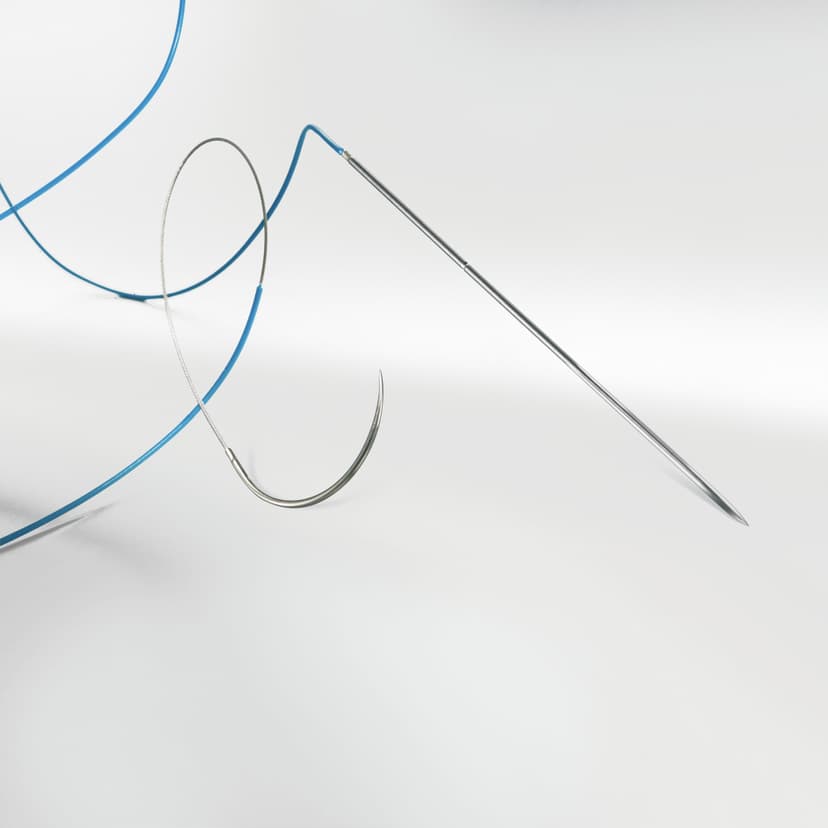

Steelex elektrodesett

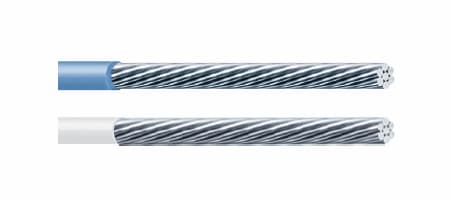

Elektrodesettet er en midlertidig pacemakerledning som brukes til å behandle arytmier under og etter åpen hjertekirurgi. Den består av en tvunnet, flertrådet ledning i rustfritt stål, delvis isolert med en hylse av blå eller hvit polyetylen.
